1972 Chevrolet C10

Build Progress 100%

Share This Build:

Supercharged 5.3L 84

Engine

6-Speed Automatic

Transmission

Yellow

Exterior Color

Black

Interior Color

Overview

A one of a kind ultimate street truck with comfort, style and performance.  This hand built street machine started off as an 8ft bed work truck.  Now sitting on a brand new 2020 Silverado drivetrain with a supercharged 5.3 V8 putting down 430 rear wheel horsepower and 465 ft lbs of torque.  To go along with the modern drivetrain is a custom modern interior with an 8 inch infotainment screen and gauge displays.  The body’s extension modifications include adding 10 inches to the width, a 2 inch roof chop, aero and spoilers on the roof and bed, and more.

Features

  • Custom steel widebody and ground effects
  • Widened 10 inches
  • 2 inch roof chop
  • 2020 Silverado 1500 chassis and drivetrain
  • Rear wheel drive
  • Nitto 315/30r22 front 325/35r22 rear tires
  • 5.3 V8 with lt4 supercharger
  • Performance valvetrain
  • Cerakoted Stainlessworks headers and custom stainless dual exhaust
  • Dyno tuned 430 wheel hp and 465 ft lbs torque
  • Front adjustable coilover springs
  • Axle flip with traction bars and rear sway bar
  • LED headlights and tail lights
  • Custom black leather interior
  • 8 inch touchscreen display
  • Power windows and mirrors

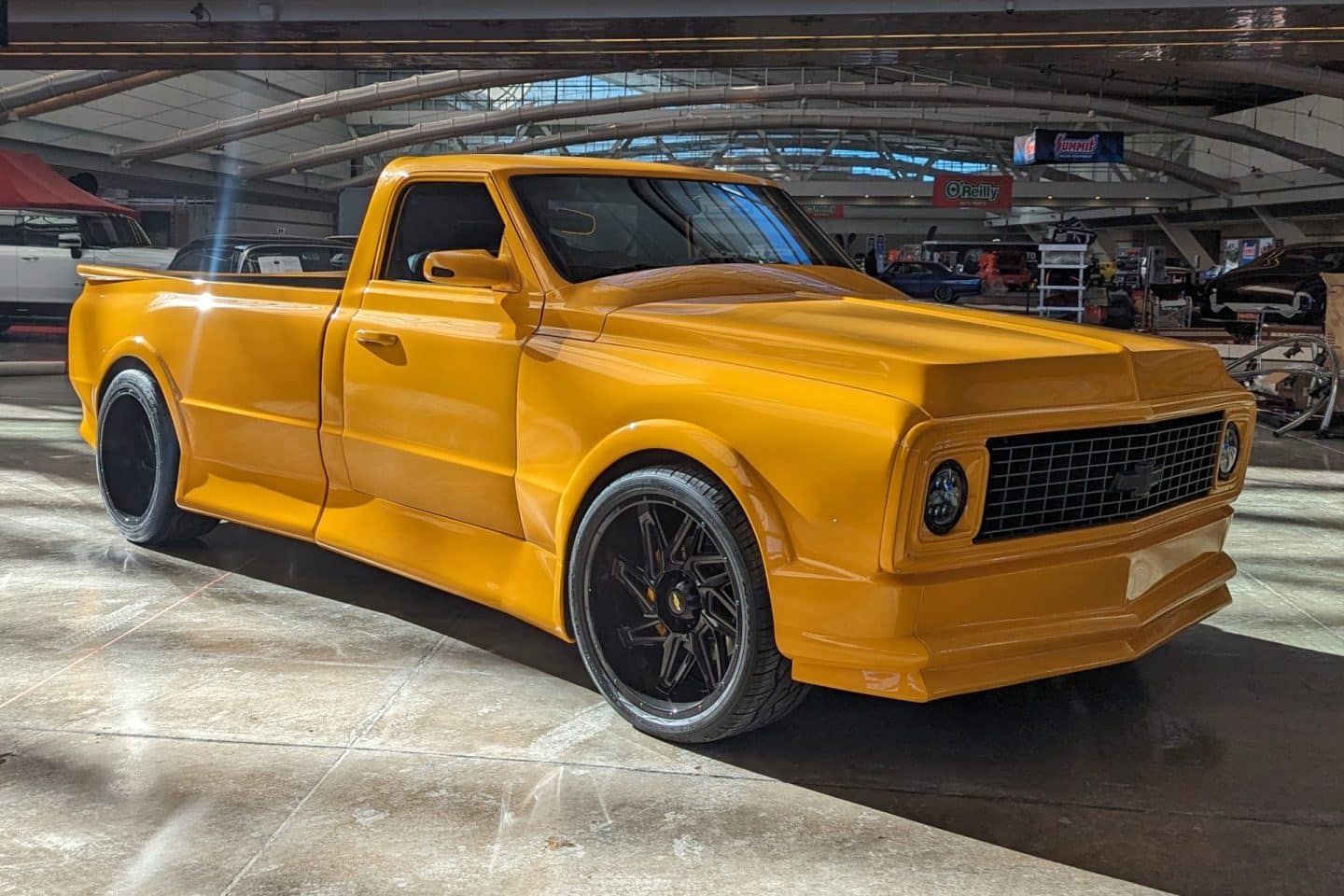

Final Assembly

First, we put the drivetrain back together on the chassis. Then, the bed and cab were remounted to the frame. The rest of the body panels are put back together on the truck. All of the wire harnesses, hoses, fluids, and other accessories are hooked up. We upholstered all the interior panels and installed windshield and glass. The truck was weighed, set for ride height, and cross balanced before being sent to the Dyno. Finally, the truck is wet sanded and buffed for a showroom finish.

First, we put the drivetrain back together on the chassis. Then, the bed and cab were remounted to the frame. The rest of the body panels are put back together on the truck. All of the wire harnesses, hoses, fluids, and other accessories are hooked up. We upholstered all the interior panels and installed windshield and glass. The truck was weighed, set for ride height, and cross balanced before being sent to the Dyno. Finally, the truck is wet sanded and buffed for a showroom finish.

Paint

After the teardown, we sandblast all the parts, including the frame, cab, bed, and body panels. Next, all the parts are sprayed with epoxy primer. With the bodywork completed, the truck and frame were prepped for paint. Finally, the frame, truck body, and panels were painted.

After the teardown, we sandblast all the parts, including the frame, cab, bed, and body panels. Next, all the parts are sprayed with epoxy primer. With the bodywork completed, the truck and frame were prepped for paint. Finally, the frame, truck body, and panels were painted.

Final Teardown

After finishing all of the fabrication work, the truck is torn down completely before sandblasting, paint prep.

After finishing all of the fabrication work, the truck is torn down completely before sandblasting, paint prep.

Interior Fabrication

We heavily modified and fitted the dash, door panels, headliner, and seats from the 2020 Silverado interior to fit into the c10 cab. Then we fabricated a custom center console. The power window regulator and motors were modified to work within the c10 doors, adding powered mirrors as well. Custom tread plates and door opening trim panels were made for around the door openings to finish out the interior fabrication.

We heavily modified and fitted the dash, door panels, headliner, and seats from the 2020 Silverado interior to fit into the c10 cab. Then we fabricated a custom center console. The power window regulator and motors were modified to work within the c10 doors, adding powered mirrors as well. Custom tread plates and door opening trim panels were made for around the door openings to finish out the interior fabrication.

Engine

We fitted the factory 5.3 engine from the 2020 Silverado, and mounted the ECU and harnesses. We implemented an LT4 Corvette Supercharger, and changed the valve train for improved performance. Next, we fabricated a custom stainless dual exhaust. Finally, hand build aluminum engine covers were made for the engine bay.

We fitted the factory 5.3 engine from the 2020 Silverado, and mounted the ECU and harnesses. We implemented an LT4 Corvette Supercharger, and changed the valve train for improved performance. Next, we fabricated a custom stainless dual exhaust. Finally, hand build aluminum engine covers were made for the engine bay.

Front End Fabrication

We built the widened fenders and flares to match the new wheel profile. Next, we fabricated a custom cowl to hide the windshield wipers. The rad support was modified next to fit the bigger radiator, intercooler, and oil coolers. A custom one piece grill and bumper were made with aluminum to tie together the ground effects from the rest of the body.

We built the widened fenders and flares to match the new wheel profile. Next, we fabricated a custom cowl to hide the windshield wipers. The rad support was modified next to fit the bigger radiator, intercooler, and oil coolers. A custom one piece grill and bumper were made with aluminum to tie together the ground effects from the rest of the body.

Bed Fabrication

We built the bed frame out of tube steel, jigged it up on the frame machine, and welded the front of the box. Next, we mounted it to the frame and welded in the inner bedsides. The bed skin was cut to a custom seven foot length, and flared out five inches on each side. We then fabricated the wheel openings and flares. The ground effects from the cab were continued through the bed and tied in with the rear bumper. Custom spoilers were added to the top edges of the bed and back of the cab.

We built the bed frame out of tube steel, jigged it up on the frame machine, and welded the front of the box. Next, we mounted it to the frame and welded in the inner bedsides. The bed skin was cut to a custom seven foot length, and flared out five inches on each side. We then fabricated the wheel openings and flares. The ground effects from the cab were continued through the bed and tied in with the rear bumper. Custom spoilers were added to the top edges of the bed and back of the cab.

Cab Fabrication

Taking the floor and firewall section of the 2020 cab along with the 72 cab, we mated them together and put them on the modified 2020 frame. We fabricated the ground effects for the cab, chopped the roof and doors two inches, and moved the windshield back. We finished fabricating the firewall and cowl area, making room for the wiper arms and motor.

Taking the floor and firewall section of the 2020 cab along with the 72 cab, we mated them together and put them on the modified 2020 frame. We fabricated the ground effects for the cab, chopped the roof and doors two inches, and moved the windshield back. We finished fabricating the firewall and cowl area, making room for the wiper arms and motor.

The C10 Project Begins

Taking the floor and firewall section of the 2020 cab along with the 72 cab, we mated them together and put them on the modified 2020 frame. We fabricated the ground effects for the cab, chopped the roof and doors two inches, and moved the windshield back. We finished fabricating the firewall and cowl area, making room for the wiper arms and motor.

Taking the floor and firewall section of the 2020 cab along with the 72 cab, we mated them together and put them on the modified 2020 frame. We fabricated the ground effects for the cab, chopped the roof and doors two inches, and moved the windshield back. We finished fabricating the firewall and cowl area, making room for the wiper arms and motor.
